Caracteristicas

Especificaciones

Feature: TRUCK CRANE

Condition: New

Application: Stations, warehouses

Rated Loading Capacity: 12t

Rated Lifting Moment: 300kN.m

Max. Lifting Load: 12t

Max. Lifting Height: 14.5

Span: 3.1-4.5

Warranty: 1 Year

Certificación: ISO CE

Name: mini truck crane

Other name: pickup truck crane

Fuel type: diesel

Brand: CLW

Size: 7100x2350x3300

Certificate: CCC,ISO

Delivery time: 15 days after payment

Port: Any port in China

MOQ: 1 set

Package: nude or wax on Ro-Ro Ship or Bulk ship or container

Información básica

Certificación: ISO CE, CCC,ISO

Pago y Envío Términos

Descripción de producto

DONGFENG 12ton small truck crane 4x2 pickup truck crane 6 wheel mini truck crane

mini truck crane is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.

Product Notes:

Optional: from 2 ton to 200 ton lifting capacity crane truck
Optional: straight arm and floding arm truck crane with or without remote control
Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
Factory direct sale, low price and good quality.

Product Information

Main Parameters of truck with crane
Product Name	truck crane
Cab	Single row cab, two doors, rated passengers 2 or 3
Chassis	Brand	DONGFENG
	Adaptive Crane	12T
	Front/Rear Axle Load	5.5T/13T
	Drive type	6x4 left hand drive or right hand drive
	Tire/Tire No.	10.00-20 18PR 10+1 spare tire
	Wheelbase(mm)	4350+1300
	Braking System	air brake
	Transmission	Manual , 12 gearbox
Engine	Brand	Yuchai
	fuel type	diesel
	Horse Power(kw/hp)	199kw/270hp
	Displacement(ml)	7520
	Emission standard	Euro 2/3/4/5
Dimension & Weight	Overall dimension (LWH/mm)	11950×2500×3450,3650
	Body dimension(LWH)(mm)	8500×2350×600
	Axles No.	3
	Curb Weight(kg)	15100
	Max speed(km/h)	90

Performance Parameters of Crane
Max lift quality(kg)	12000	Max. Lifting Height(m)	14.5	Number of boom sections	5
Working radius(m)	16.4	Outrigger span(m)	3.8-5	Boom shape	Hexagon
Swivel Angle Range	360°	Installation space	800mm

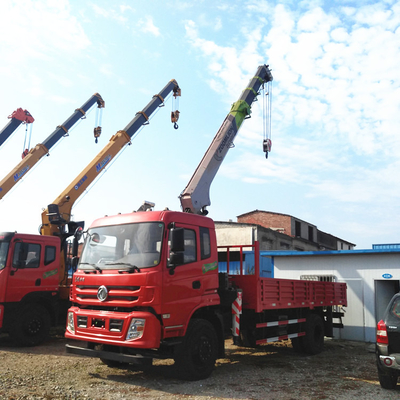

Product Pictures

Truck with crane series

Packaging & Shipping

1.Packaging: nude or waxing.

2.Shipping: in the 20GP/40GP container or Ro-Ro ship or bulk ship according to the customer’ order or requirement.
